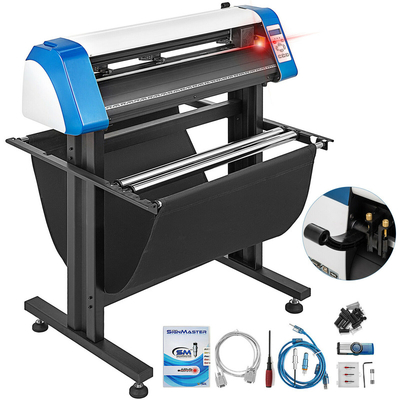

53 Inch Vinyl Cutter Plotter
This 53" Professional Vinyl Cutting Plotter with stand comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes!
Comes with large control panel buttons. Adjustable speed and force is available by the touch of a button. The digital readout makes for accurate and precise settings.
Suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.

· Cutting Capacity

· Strong Stability

· Digital Control

· High Compatibility

High Efficiency

With large paper feed and cutting width, features high cutting precision and paper feed precision. D-typed motherboard and stepper motors are equipped.

USB & Serial Ports

COMPIM and USB ports available. Standard USB 2.0 interface equipped. Vinyl cutter is operated by the SIGNMASTER software. User manual is included in the USB flash driver.

Adjustable Force & Speed

Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting.

Precise Blade

Equipped with three standard blades with a diameter of 2mm, Roland compatible. Also structured with a closed blades holder, not easy to slip.

Anti-deviation Design

4 adjustable double-spring pinch rollers, aluminum knurling stick, high precision pressing wheels and scale line ensure the anti-deviation of paper feed by long distance.

Sturdy Floor Stand

Structured with heavy duty sheet metal floor stand, featuring 4 caster wheels for convenient movement.

Features & Details

· [CUTTING CAPACITY]- 53-inch vinyl cutter with maximum paper feed of 1350mm(53.1"), maximum cutting width of 1260mm(49.6"), cutting precision of +/-0.01mm(0.0004"), and paper feed precision of 3m(118").

· [STRONG STABILITY]- Adopts D-typed motherboard and 4M high speed cache memory. 4 double-spring pinch rollers and aluminum knurling stick ensure that the paper feed will not deviate by long distance.

· [DIGITAL CONTROL]- Comes with illuminated LCD screen and large control panel. With cutting pressure 10-500g adjustable, and cutting speed 10-800mm/s adjustable.

· [HIGH COMPATIBILITY]- Available with COMPIM and USB interface for more precise control. Supports DM/PL, HP/GL language. System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32& 64). NOT compatible with Mac system.

· [WIDELY USED]- Can be used in advertisement field, various decoration, handcraft, supplementary for heat transfer, label & sign making, etc.

· Voltage: 220V AC

· Max Paper Feed: 1350mm (53.12 inch)

· Max Cutter Width: 1260mm (49.6 inch)

· Mainboard: D-typed board

· Cutter Pressure: 10-500g

· Cutting Speed: 20-800mm per second

· Number of Pinch Rollers: 4

· Memory: 4MB high speed cache memory

· Cutting Accuracy: ± 0.0004" (0.01 mm)

· Driving Method: Stepper Motor

· Positioning: Manual

· Interface: RS232 Serial Port & USB 2.0

· Language: DM/PL, HP/GL

· Temperature: 5-35℃

· Relative Humidity: 30%-50%

· Machine Language: English/Chinese switchable

· Warranty: 2 years

· Software Compatibility: AUTCUT, Coreldraw, Fexi, Signcut, Signmaster, AI, Winpcsingn

· System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10(32& 64)

· Gross Weight: 69.7 lb (31.6 kg)

· Package Dimensions (L x W x H): 65.4" x 17.3" x 13.8" (166 x 44 x 35 cm)

Specifications

· Max Paper Feed: 1350mm (53.1")

· Max Cutter Width: 1260mm (49.6")

· Cutter Pressure: 10-500g

· Cutting Speed: 10-800 mm per second

· Memory: 4M

· Repetition Accuracy: 0.0004" (0.01 mm)

Package Content

· 1 X 54 Inch Vinyl Cutter Plotter Machine

· 1 X SIGNMASTER Software

· 1 X Stand

· 1 X Dust Cover

· 1 X USB Cable

· 1 X Serial Cable

· 1 X USB Flash Disk

· 1 X Power Cord

· 1 X User Manual (Included In USB Driver)
