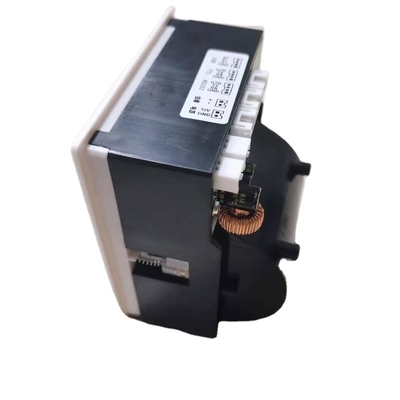

2 Inch 58mm Black And White Thermal Panel Printer T8L-US With USB TTL RS232 Interface Embedded Thermal Printer For Medical Scale Labels

2 Inch 58mm Thermal Panel Printer T8L-US with USB TTL RS232 Interface Embedded Thermal Printer for Weighing Scale Medical Labels

Feature:

♦ Streamlined appearance, beautiful and compact, comfortable to hold.

♦ Easy paper loading, Easy to use;Classic triple key, easy to operate

♦ Menu style operation, simple and easy to understand

♦ Can provide DLL, SDK, application Demo, support customer application development.

2 Inch 58mm Thermal Panel Printer T8L-US with USB TTL RS232 Interface Embedded Thermal Printer for Weighing Scale Medical Labels

System configuration

♦ CPU: M4 32 - bit processor

♦ Storage: DRAM/8192KB ROM/8192KB

♦ Screen: 0.96inch OLED

♦ Buttons: switch/set/paper

♦ Battery: removable 7.4 V 2600 mah rechargeable lithium batteries, using high-performance batteries, long cycle life, battery state of charge is standby for 7 days.

♦ Power adapter: AC100-240 V wide range input, load capacity is strong, the standard DC 5 v 1 a adapter (optional DC 5 v - 2 a adapter, charging more efficient)

♦ Printer size (L * W * D) : 125 mm * 110 mm * 60 mm

♦ Printer weight:350g(battery included, no label paper included)

2 Inch 58mm Thermal Panel Printer T8L-US with USB TTL RS232 Interface Embedded Thermal Printer for Weighing Scale Medical Labels

Communication parameters

♦ Bluetooth: BT3.0 and BLE4.0, can be connected with android, apple systems.

♦ USB:USB2.0

2 Inch 58mm Thermal Panel Printer T8L-US with USB TTL RS232 Interface Embedded Thermal Printer for Weighing Scale Medical Labels

Printing parameters

♦ Print mode:Thermal line

♦ Resolution: 576 / line

♦ Effective print width: 72 mm (support 80 mm wide common label thermal paper, can choose 12-80 - mm (including the lining paper)

♦ Can accommodate 50 mm diameter paper roll

♦ Printing speed: 90 mm/SEC

♦ Mechanism life cycle time:50km

♦ Font size: character 16x16/24x24/32x32 ASCII 8x16/9x24/12x24/16x16/16x32/18x16(It can be magnified 1~10 times both horizontally and vertically, and it can be rotated to print 10 degrees /90 degrees /270 degrees /360 degrees)

♦ instruction set: TSC/ESC/CPCL instructions, download bitmaps, NV bitmap, a variety of one-dimensional bar code, QRCODE qr code

♦ Support system: Android/IOS/Windows.

2 Inch 58mm Thermal Panel Printer T8L-US with USB TTL RS232 Interface Embedded Thermal Printer for Weighing Scale Medical Labels

Work environmental requirements

♦ Working temperature: 5℃ to 45℃

♦ Work humidity: 0 ~ 93% (not coagulate frost)

♦ Storage temperature: - 20℃ to 60℃

♦ Storage humidity: 0 ~ 95% (not coagulate frost)
